Plastic end caps for easy adjusting tilt angle Weather and dust proof Mounting brackets for Heat Storm roll cage or tri-pod

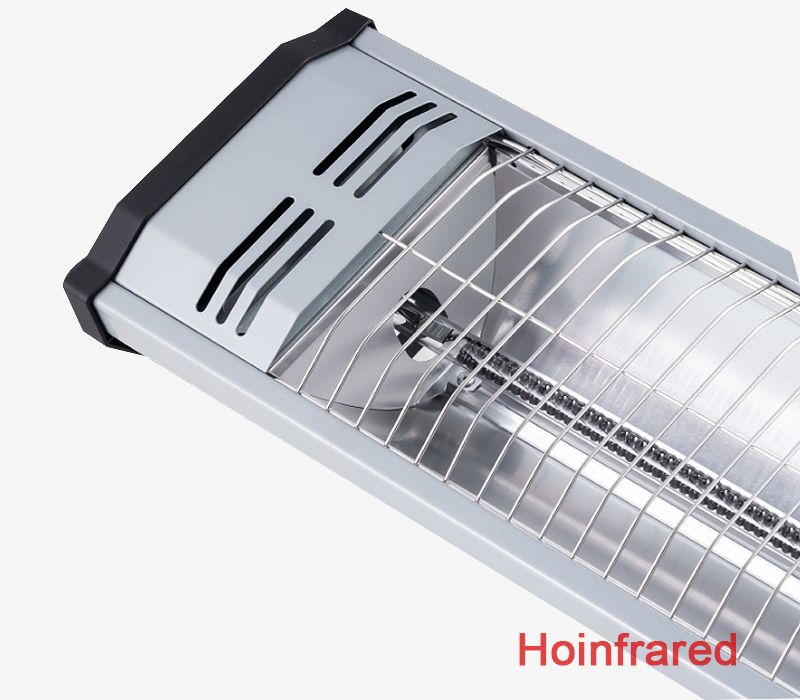

Infrared Quartz heater is a ceiling/wall mounted heater that provides gentle warmth for areas where floor space is at a premium and with the flexibility to install it on a wall or the ceiling. IR heater provides radiant heat energy, which instantly warms people and solid objects within the beam of heat. It is ideal for patios, balconies, workshop, garage, etc. Its features include 1500-Watt of gentle, radiant heat, an anodized extruded aluminum alloy frame, an aluminum reflector that evenly concentrates heat outward, a mounting bracket that tilts 30° forwards and backward to angle unit as needed. It is protected against rain and dust (IP35).
SAFETY PRECAUTIONS :
1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
We are a manufacturer and exporter to specialize in all kinds of IR heat tube , halogen heater lamps, including infrared heat lamps for industrial process, ruby slim heater lamps, Ruby jacket halogen heater lamps, Helen (gold) lamps for heater and gold reflector heater lamps( single tube and twn tube).
