Infrared Heat Lamps

Infrared Heat Lamps with R7s base

hoinfrared

This Tungsten Halogen bulb features a Double Ended R7s cap and a lamp life of 2000 hours, twice that of an incandescent bulb.This bulb is 117-500mm in length and operates at 240 Volts. The most popular applications for this lamp are floodlight and display lighting

Customized!

Please submit your email

IR ray is a kind of electromagnetic wave. It transmits energy at the speed of light. The energy from the sun mostly transmits by it. In spectral distributions, the wavelength is from 0.75um to 10um. It can be divided into shortwave ( 0.75-2um), medium wave( 2-4.0um ). And long wave ( 4-10um).

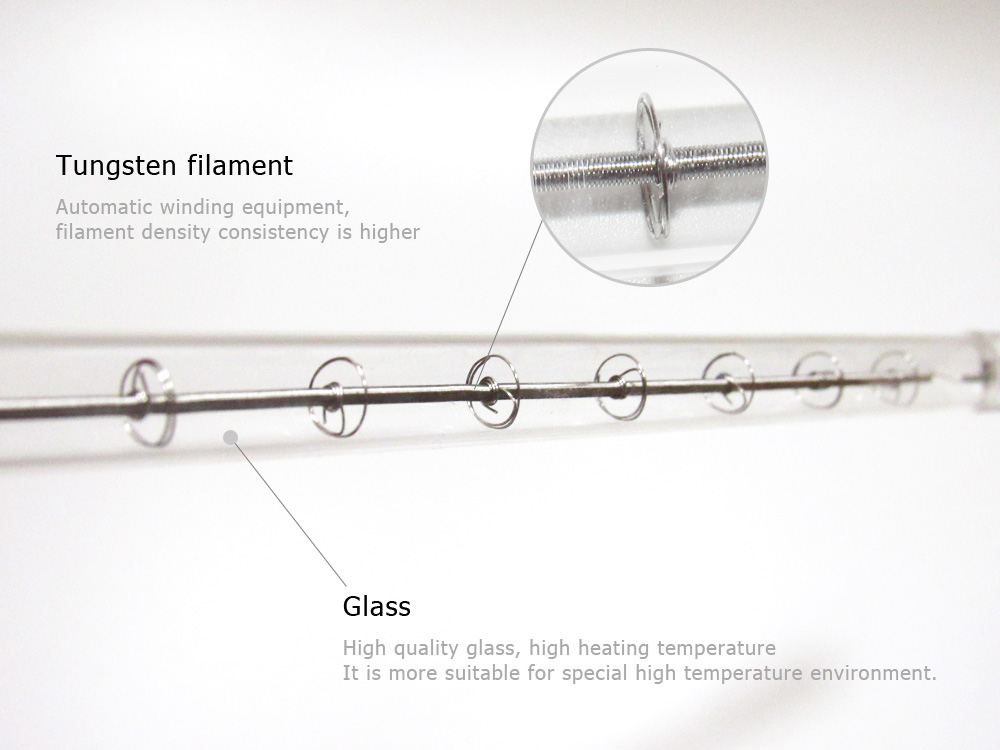

Infrared Heat Lamps with R7s base(图1)

Infrared Heat Lamps with R7s base(图2)


The advantage of infrared heating lamps.
--------------------------------------------------------------------------------
- Over-long life
- Immediate heat up and cool down
- Maximum efficiency in heating
- Extremely density of power output
- Compact size of pyrotoxin
- Perfect suited IR ray Spectrum
- Unusual mechanical intensity and waterproof capability
- High efficient reflected coating
- Be made of the quartz glass which has a capacity of best IR ray permeation
- Save on power and protect environment

The applications of infrared heating lamps
--------------------------------------------------------------------------------
We mainly manufactures teh shortwave and medium wave Quartz IR heating lamps
Our experts can design the different IR lamps according to the character of heated object and the customer's need. The spectral distribution of the lamps can be exactly control as adopting special manufacturing craft work. It can be widely used as follows:
1. Paint drying in tunnels and body shops.
2. Blowing of PETP bottles.
3. Plastic thermoforming
4. Heating of Food and keeping it warm
5. Paper drying in paper mills.
6. Drying of lacquer, printing inks
7. Pre-heating of wood prior to lacquering
8. Heat sterilization
9. Softening, melting of plastic
10. Microwave furnace
11. Metalworking
12. Medical treatment, printing, textile etc.

Infrared Heat Lamps with R7s base


Type #SpecCWFINISH
HS375T3/7120V 375W217.60127.0CLEAR
HS500T3/7120V 500W217.60127.0CLEAR
HS1600T3/7240V 1600W498.60406.0CLEAR
HS2500T3/7480V 2500W730.0635.0CLEAR
HS13169R235V 500W220.60165.0CLEAR
HS13908R230V 300W117.660.0CLEAR


SAFETY PRECAUTIONS :

1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
